The 3 Axles 80Ton Dump Trailer is engineered for heavy-duty applications, featuring a self-unloading hydraulic system that efficiently handles bulk cargo such as sand, stone, coal, and ore. Designed for mining, construction, and logistics operations, this trailer is built for durability, safety, and efficiency.
The main beam has a double 8+8mm plate design, ensuring superior load-bearing capacity.
The 550mm middle plate height provides enhanced structural stability.
The upper and lower plates (both 18mm thick) contribute to greater strength and durability, reducing the risk of deformation under heavy loads.
Equipped with a HYVA brand hydraulic cylinder, ensuring smooth lifting and quick unloading.
The reinforced base plate and triangular beam reinforcement design improve the torsion resistance of the chassis, preventing structural damage over time.
Uses a reinforced and thickened mechanical suspension, designed for uneven roads and harsh environments.
The dump trailer leaf spring is reinforced at critical points to extend its service life.
The chassis beam and bottom plate feature mesh beam reinforcement, preventing cracks and reducing vibrations during transportation.
The JOST 28T landing gear provides excellent support when parked or during loading/unloading operations.
Designed to withstand heavy loads and frequent operation, reducing wear and tear over time.
Fitted with high-strength tipper trailer tires, which offer better traction, longer lifespan, and lower rolling resistance.
Ideal for off-road conditions, ensuring stability and safety in mining and construction environments.
3 Axles 80Ton Dump Trailer For Sale
3 Axles 80Ton Dump Trailer Manufacturer
HUAYU 3 Axles 80Ton Dump Trailer For Sale
The height of the middle plate of the main beam of HUAYU self-dumping semi-trailer is 550mm, and the double 8+8mm plate design is adopted, with the upper plate 18mm and the lower plate 18mm.
3 Axles 80Ton Dump Trailer Detail:
Mechanical suspension reinforced and thickened
HUAYU dump trailer is reinforced in the most vulnerable places to improve the service life of the dump trailer
The landing gear are made of 28 T JOST brand
Equipped with HYVA brand hydraulic cylinder

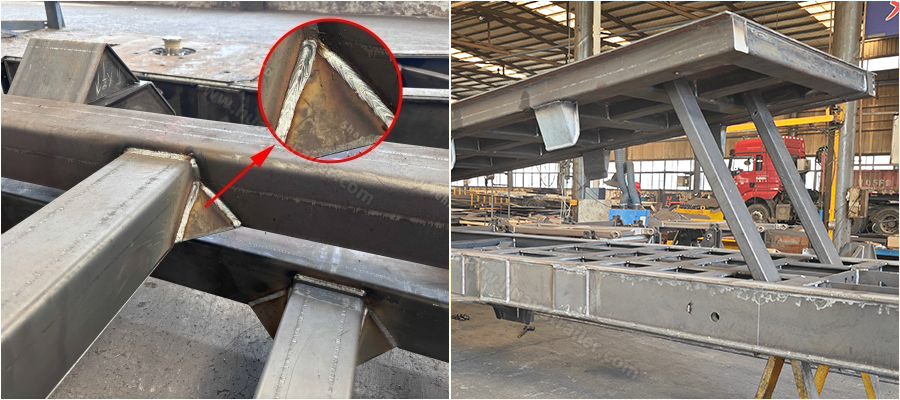

The main beam adopts 8mm double web, and the bottom frame and main beam are reinforced with triangular plates to increase the overall torsion and compression resistance of the semi-trailer. The chassis beam and the bottom plate of the box body adopt a mesh beam reinforcement design.
The 3 Axles 80Ton Dump Trailer is a versatile and essential vehicle for industries that require bulk material transport. It is widely used for:
✅ Mining Operations – Efficiently transports ore and coal from mining sites to processing plants.
✅ Construction Projects – Moves large volumes of sand, gravel, and stone for infrastructure development.
✅ Logistics & Freight Transport – Handles heavy industrial materials with ease.
✅ Agriculture Sector – Transports bulk agricultural products such as soil, fertilizers, and crops.
High-Strength Materials – Built from premium Q355/T700 steel, ensuring maximum durability.
Efficient Dumping System – The HYVA hydraulic cylinder offers quick and reliable unloading.
Heavy-Duty Load Capacity – Capable of carrying up to 80 tons without compromising performance.
Long-Lasting Suspension – Reinforced mechanical suspension improves stability and shock absorption.
Customizable Configurations – Dimensions, axles, and other specifications can be tailored to customer needs.
Trusted by Global Clients – Widely exported and highly rated by transportation companies worldwide.
Hydraulic System Inspection
Regularly check hydraulic oil levels and replace worn-out seals to prevent leaks.
Ensure the cylinder moves smoothly without resistance for efficient tipping.
Tire Care
Monitor tire pressure and tread wear to prevent blowouts.
Rotate tires periodically to extend lifespan and ensure even wear.
Lubrication and Suspension Maintenance
Grease suspension joints and leaf springs regularly to reduce friction and extend service life.
Inspect the mechanical suspension for signs of damage or stress cracks.
Structural Check
Examine the chassis beams and welded joints for signs of fatigue or corrosion.
Reinforce high-stress areas to prevent unexpected breakdowns.
1. What types of cargo can the 3 Axles 80Ton Dump Trailer transport?
It is designed to transport bulk materials such as sand, coal, gravel, ore, and soil.
2. How does the hydraulic system work?
The HYVA hydraulic cylinder lifts the dump box, allowing the cargo to be quickly and efficiently unloaded.
3. What is the lifespan of this dump trailer?
With proper maintenance, the HUAYU 3 Axles 80Ton Dump Trailer can last 10+ years even under extreme working conditions.
4. Can I customize the dimensions and components?
Yes, HUAYU offers customizable options, including axles, box dimensions, tire types, and suspension systems.
5. Is this trailer suitable for rough terrain?
Yes, its reinforced mechanical suspension and high-strength frame make it ideal for rugged mining and construction sites.
6. What materials is the trailer made of?
It is made from Q355/T700 high-strength steel, which offers superior durability and impact resistance.
The HUAYU 3 Axles 80Ton Dump Trailer is a heavy-duty transport solution designed for efficiency, durability, and maximum load capacity. Whether you're hauling bulk materials for mining, construction, or logistics, this trailer ensures safe and reliable operations. With advanced hydraulic technology, reinforced suspension, and a high-strength steel structure, it’s the ideal choice for demanding industries.
Interested in this trailer? Contact us today for a quote!
