HUAYU flatbed trailers are suitable for ports, construction sites and logistics and transportation basins.We can customize your flatbed semi trailer according to your needs, including 20 feet flatbed trailer for sale、40 feet flatbed trailer for sale、 super link semi trailer for sale、 lowbed trailer for sale、side wall trailer for sale、fence cargo trailer for sale.
We focus more on the quality of semi trailers! HUAYU flatbed trailers are one of the best choices
What size is a flatbed trailer?
The size of flatbed trailers varies greatly due to the different road requirements in each country. Usually, flatbed trailers are customized according to the size of the container, such as 20 ft, 40 ft,45ft, 48 ft, 53 ft, etc. HUAYU can produce flatbed trailers according to your needs. The most common lengths of flatbed trailers are 12.5m, 13m, and 13.6m. The longest extendable flatbed trailer produced by HUAYU is 25m in length.
4 Axles Flatbed Trailer

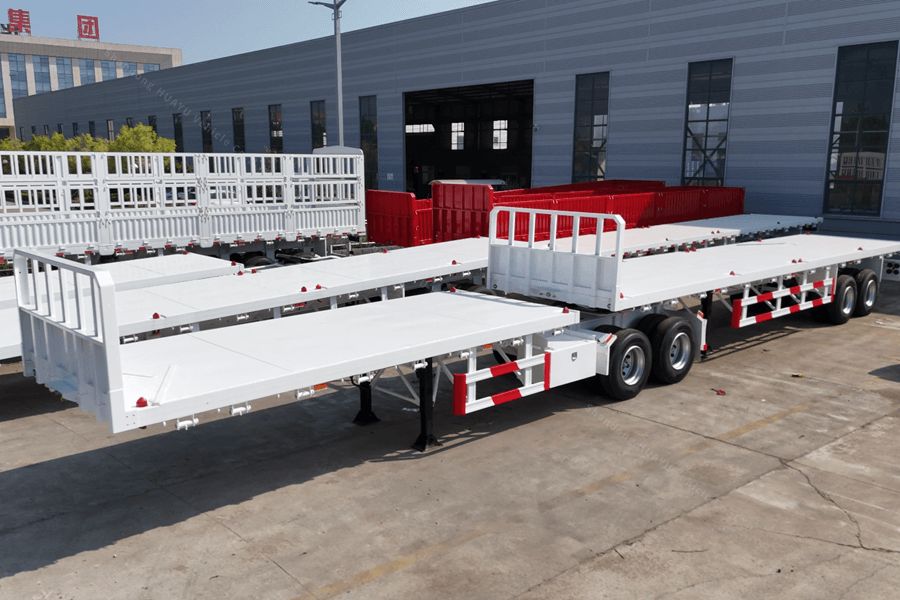

Super link Flatbed Semi Trailer
Flatbed Trailer Product Details
Reinforcing the Mechanical Suspension
Chassis Suspension Square Tube Reinforcement
How is HUAYU mechanical suspension reinforced?
1. The mechanical suspension and the beam are reinforced with triangular steel
2. The middle of the two mechanical suspensions is reinforced with square tubes
3. The bracket connecting the suspension and the beam is thickened
Main Beam、Side Beam
Leaf Spring（90(W)mmx13(Thickness)mmx10 layers ）
Flatbed trailer main beam steel Q345B and T700 are available
Main beams ：Upper flange:14mm, Middle:8mm ,Down:16mm ,Height: 500mm
Side beam: 16# Steel channel
Cross beam: 10# Steel channel
HUAYU flatbed trailer is suitable for various bumpy road conditions due to the thickness of steel used and the reinforcement of various parts of the semi trailer.
315/80R22.5 Tire
Taillights with Lampshades
Flatbed Trailer Packaging
Semi Trailer Split Packaging Delivery
HUAYU Flatbed Trailer Factory
Flatbed Trailer Chassis Welding
Flatbed Trailer Manufacturer
Vedio of HUAYU 4 Axles Flatbed Semi Trailer
What is the difference between a flatbed trailer and a lowbed trailer?
1. Structural design: Compared with flatbed trailers, lowbed trailers have a lower chassis height and a lower center of gravity during transportation.
2. Use: Flatbed trailers usually transport containers, small equipment, construction materials, etc. Lowbed trailers mainly transport heavy machinery, engineering equipment, engineering vehicles and rail vehicles, etc.
3.Methods of loading and unloading cargo：The flatbed trailer has a flat loading surface and is loaded and unloaded by forklifts. The lowbed trailer is equipped with a ladder, which makes it easier for rail vehicles to drive up via the ladder.
