| Loading capacity: | |
|---|---|
| Products Model: | |
| Application: | |
| Delivery time: | |
The 3 Axles 80Ton Lowbed Trailer with Side Baffle is engineered for heavy-duty transport, making it ideal for construction machinery, oversized cargo, and industrial equipment. Whether you're in the construction, mining, or manufacturing industry, this trailer provides a secure, stable, and efficient transportation solution.
| Feature | Specification |
|---|---|
| Product Name | 3 Axles 80Ton Lowbed Trailer With Side Baffle |
| Loading Capacity | 80 Ton |
| Overall Dimension | 15000mm × 3000mm × 3700mm |
| Tire Specification | 315/80R22.5 |
| Suspension Type | Mechanical Suspension |
| Spring Leaf | 90mm(W) × 16mm(Thickness) × 10 Layers |
| Kingpin | JOST Brand 2.0 or 3.5 inch |
| Valve System | WABCO Valve |
| Landing Gear | Optional 28T JOST Landing Gear |
| Axle Options | BPW / FUWA / SAF / ZY / HUAYU |
| Ladder Options | Mechanical Ladder / Hydraulic Ladder |
| Delivery Time | 15-25 Days |
The lowbed trailer with side baffle makes the goods safer during transportation, preventing the goods from sliding or falling during transportation, especially for loose goods or large goods that are not easy to fix. The side baffle can be removed or lowered to make loading and unloading easier.

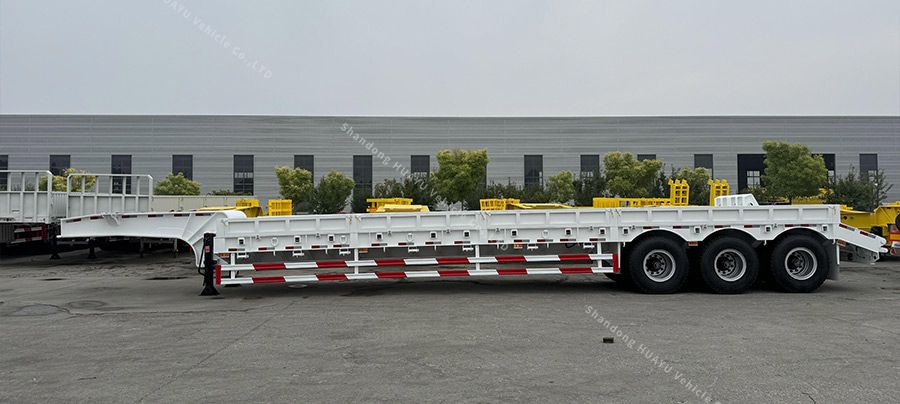

3 Axles 80Ton Lowbed Trailer With Side Baffle Imges
3 Axles 80Ton Lowbed Trailer For Sale
3 Axles 80Ton Lowbed Trailer Manufacturer

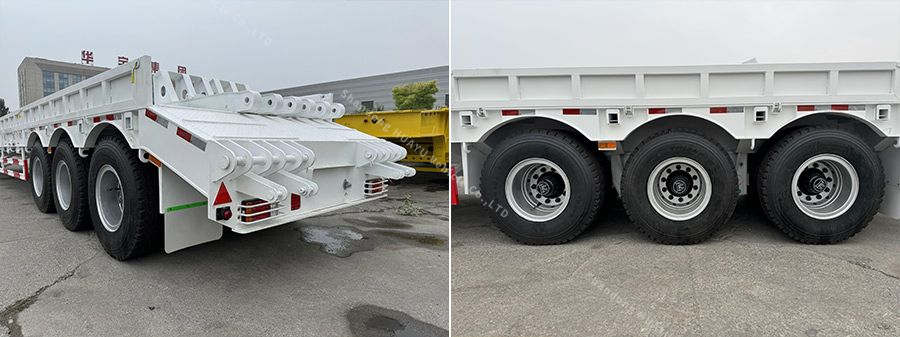

3 Axles 80Ton Lowbed Trailer Detail
Optional 28T JOST Landing Gear
According to customer requirements, side installation rope tightener and large rope hook are convenient for customers to fix goods
Axle can choose BPW/FUWA/SAF/ZY/HUAYU brand, ladder can choose mechanical ladder and electric ladder
Side baffles prevent shifting or sliding during transit, providing extra safety for irregularly shaped loads.
The detachable or foldable design ensures easy loading and unloading of heavy machinery.
Suitable for both loose and oversized cargo, offering versatile transportation options.
Constructed with high-strength steel, ensuring a durable and impact-resistant structure.
80-ton capacity, ideal for bulldozers, large machinery, and industrial materials.
10-layer reinforced leaf spring suspension absorbs shock and improves ride stability.
Axle brands available: BPW, FUWA, SAF, ZY, and HUAYU to fit different operational needs.
Choice of mechanical or hydraulic ladder, depending on cargo handling requirements.
Equipped with rope tighteners and large hooks, making securing cargo faster and more efficient.
This trailer is widely used for transporting excavators, loaders, heavy machinery, and oversized industrial cargo. Its reinforced frame, stable suspension, and optional accessories ensure safety and efficiency in demanding conditions.
✅ Side baffle system for extra cargo protection.
✅ High-strength steel frame for heavy loads.
✅ Customizable axle, suspension, and ladder options.
✅ Optimized for engineering, construction, and industrial transport.
Shandong HUAYU Vehicle Co., Ltd. continues to deliver high-performance trailers that meet industry demands with quality, reliability, and efficiency.
Looking for a high-performance lowbed trailer? Reach out to us for pricing and customization options!
