Parameter | Specification | Industry Standard |
Axle Configuration | 4 Axles (Air Suspension) | 3 Axles (Mechanical) |
Payload Capacity | 50-70 tons | 40-60 tons |
Dimensions (L×W×H) | 13,500×2,500×3,800 mm | 12,400×2,500×3,800 mm |
Suspension Type | Multi-link Air Suspension | Mechanical/Bogie |
Braking System | Dual-line Pneumatic + ABS Optional | Basic Pneumatic |
Tire Specification | 12R22.5 (16 pcs) | 12R22.5 (12 pcs) |
Chassis Material | Q345B High-Strength Steel | Standard Steel |
Certification | CE, ISO9001 | CE |
Key Upgrades from 3-Axle Models:
● +25% Payload: Enhanced structural integrity from 4 axles distributes weight efficiently.
● Air Suspension Benefits: Reduced vibration, improved cargo safety, and compliance with EU road regulations.
● ABS Integration: Optional anti-lock braking aligns with 2023 EU safety mandates.
The advantage of fence cargo trailer is that the side plate height is high enough to transport more goods, and the side plate height of fence cargo trailer is usually 1800mm, 2000mm, 2200mm, 2400mm. The length of the barn type semi trailer is usually 9.5 meters, 10.5 meters, 11 meters, 11.5 meters, 12.5 meters, 12 meters, 13 meters，14 meters size specifications.

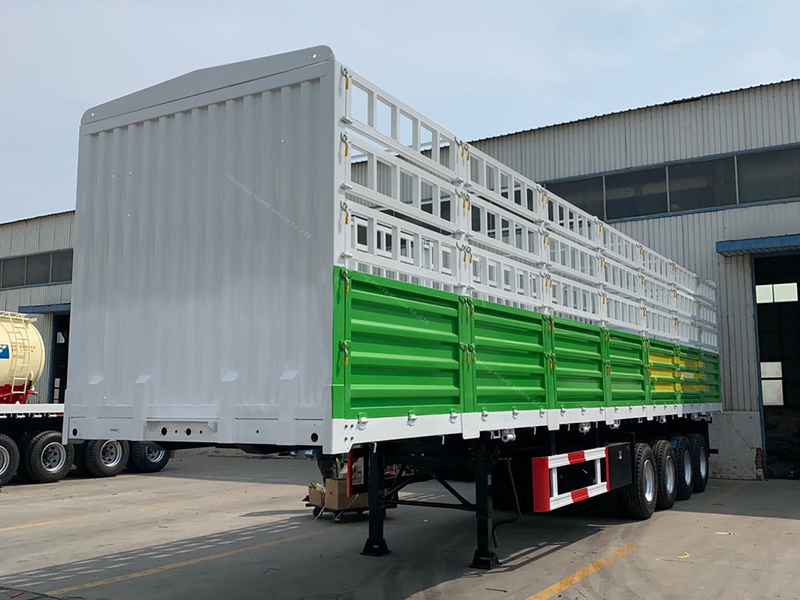

4 Axles Air Suspension Fence Cargo Trailer For Sale

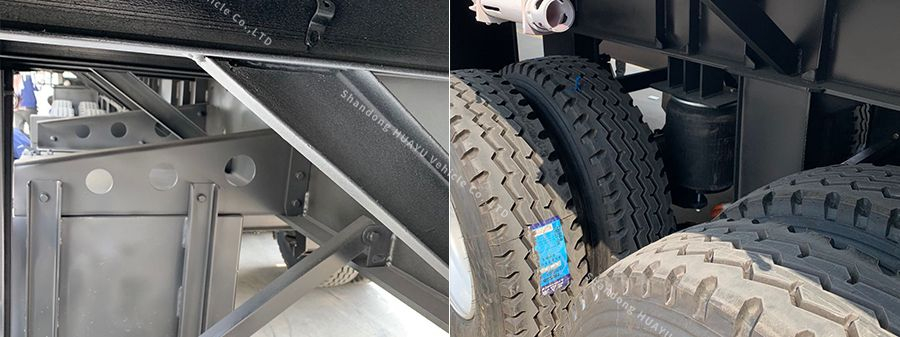

HUAYU 4 axles air suspension fence cargo trailer using Q345B steel,beam height 500mm、upper plate 16mm、 bottom plate double 10mm、middle plate18mm
Comes with an aluminum alloy toolbox for more durability and protection against rust
4 Axles Air Suspension Fence Cargo Trailer Specifications:
Axle brand:FUWA/BPW/SAF/HUAYU
Landing gear:28Ton JOST
Suspension:Air suspension
Tire:13 units 12R22.5
Dimension:14000x2500x3800mm(side board:2200mm)
The rise of cross-border e-commerce demands trailers capable of handling mixed cargo (e.g., machinery, perishables). The fence design’s detachable side walls enable rapid loading/unloading, reducing downtime by 30% compared to enclosed containers.
Air suspension reduces fuel consumption by 8-12% through optimized weight distribution and lower friction. This aligns with the EU’s 2025 Carbon Neutrality Targets, making it a preferred choice for eco-conscious fleets.
Integration with IoT-enabled tracking systems (e.g., tire pressure sensors, load monitors) is seamless due to the trailer’s 24V electrical system and compatibility with telematics devices.
Comparative Analysis: 4 Axles Air vs. 3 Axles Mechanical
Metric | 4 Axles Air Suspension | 3 Axles Mechanical |
Payload Efficiency | 70 tons (Max) | 60 tons (Max) |
Fuel Efficiency | 6.5 km/liter | 5.8 km/liter |
Maintenance Cost/Year | $1,200 | $1,800 |
Terrain Adaptability | Excellent (Uneven roads) | Moderate |
Noise Reduction | 40 dB | 55 dB |
● Lower TCO (Total Cost of Ownership): Despite higher upfront costs ($85k vs. $65k), reduced fuel and maintenance expenses yield ROI within 2 years.
● Compliance: Meets stricter EU noise and emission standards.
● Extended Wheelbase: Up to 8,500 mm for oversized cargo.
● Floor Reinforcement: 8 mm stainless steel for mining equipment transport.
Component | Premium Option | Standard Option |
Axles | BPW 13-ton | FUWA 13-ton |
Landing Gear | JOST 32T | FUWA 28T |
Kingpin | JOST Bolt-in 3.5" | Welded 2" |
● Anti-Corrosion Coating: 3-layer sandblasting + epoxy primer for tropical climates.
● Smart Lighting: LED strips with motion sensors for nighttime safety.
A Brazilian agro-export company switched from 3-axle mechanical trailers to 4 Axles Air Suspension models:
● Result: 22% fewer damaged goods due to vibration reduction.
● Cost Savings: $18,000/year in fuel and axle repairs.
1. Proven Expertise: 100+ units/month production capacity with CE/ISO certifications.
2. Global Compliance: Trailers adhere to EU, AU, and ASEAN road safety norms.
3. Future-Ready Designs: Modular chassis for hybrid/electric truck compatibility.
