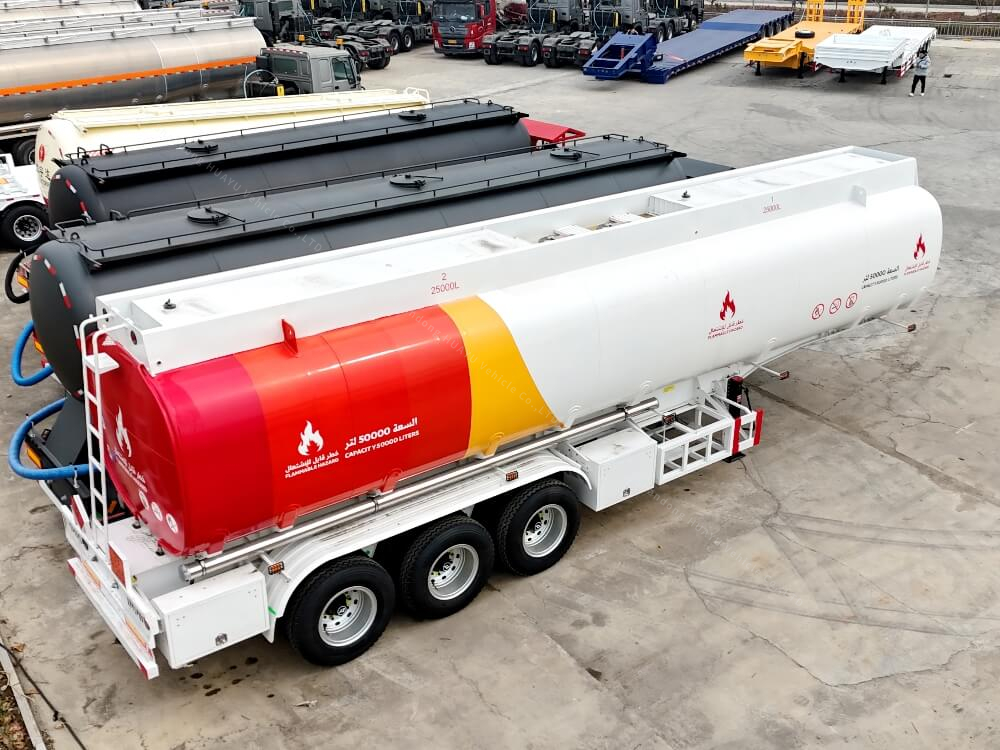

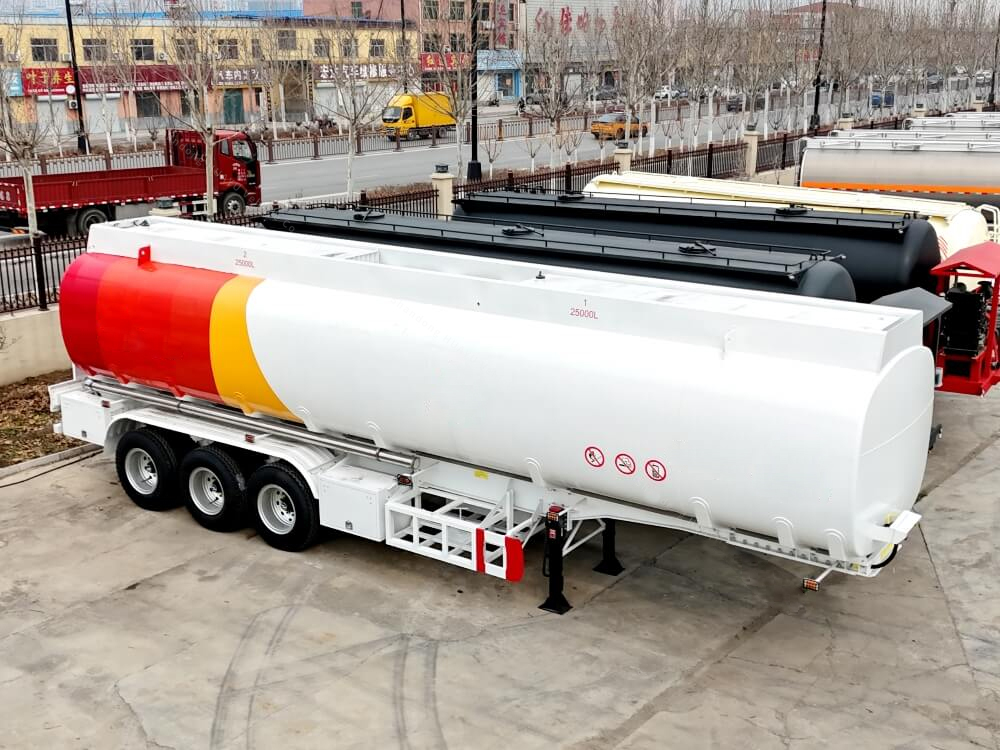

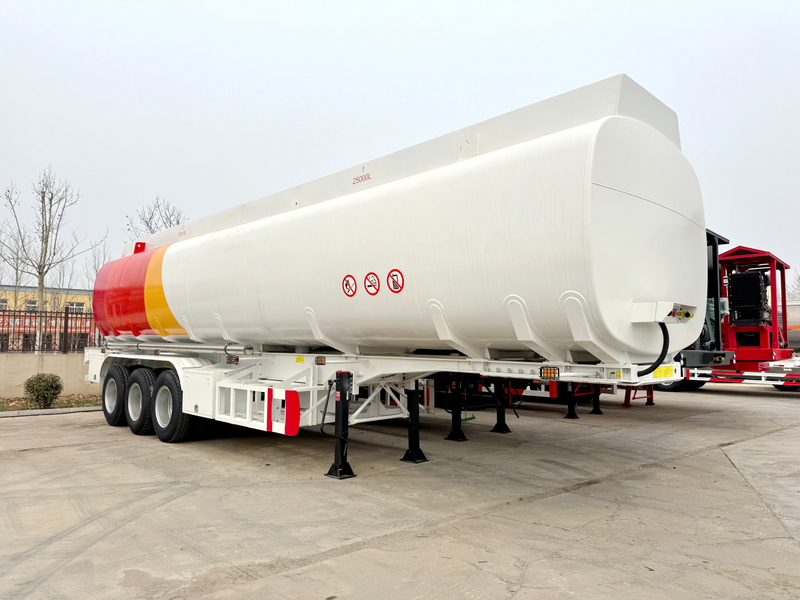

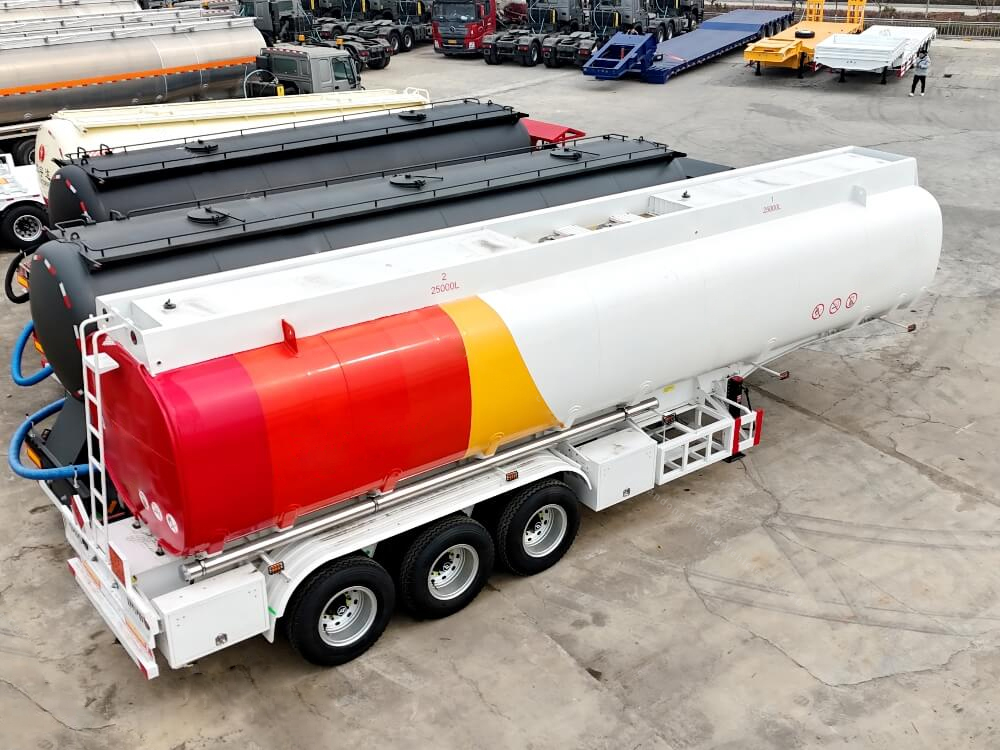

3 axle 50000l fuel tanker trailer
HUAYU Vehicle
The Aluminum Alloy 3 Axles 50000L Diesel Oil Tanker Semi Trailer by Shandong Huayu International Trade Co., Ltd. represents the pinnacle of modern fuel logistics engineering. Designed for high-efficiency transportation of diesel, gasoline, and other petroleum derivatives, this trailer integrates lightweight aluminum alloy construction with robust load-bearing capabilities. With a 50,000-liter capacity and compliance with global safety standards (ADR, CE, and ISO9001), it addresses the dual demands of operational efficiency and regulatory compliance in energy logistics.
Core Specifications
Tank material: Aluminum alloy, carbon steel
Tank shape: oval, round
Capacity: 20000L-90000L（customizable）
Axle brand: FUWA/BPW/ZY/HUAYU
Landing gear: JOST/FUWA
Compartments: 2 Compartments
Equipped with a water tank and a fire extinguisher
Discharge valve API international standard
Seabed valve: When an emergency occurs, the emergency switch or control switch can be pressed to close the valve; When the bottom of the vehicle is hit and the pipeline is damaged, the emergency valve will be disconnected along the groove on the valve, which will not hurt the tank and will not produce oil leakage.
| Parameter | Specification | Industry Benchmark |
|---|---|---|
| Tank Volume | 50,000L (13,200 gallons) | 30,000–45,000L |
| Material | 5083/5454 aluminum alloy (5–6mm) | Carbon steel (6–8mm) |
| Axle Configuration | 3 BPW/FUWA 13T axles | 2–3 axles (local brands) |
| Tare Weight | 8,500–9,200 kg | 12,000–14,000 kg (steel) |
| Discharge System | 4" API pneumatic valves + vapor recovery | Basic 3" ball valves |
| Certifications | ADR 2019, CE, SASO, ISO9001 | CE or regional standards |
Design Innovations:
Modular Baffles: 7 transverse wave plates minimize liquid sloshing during transit.
Corrosion Resistance: Electrophoretic coating extends service life to 15+ years.
IoT Integration: Optional 4G-enabled sensors monitor fill levels, pressure, and GPS location.
This tanker trailer serves critical roles across industries requiring bulk liquid transport:
| Industry | Use Case | Operational Advantage |
|---|---|---|
| Oil & Gas Distribution | Diesel/gasoline delivery to stations | 50,000L capacity reduces delivery frequency by 35% |
| Agriculture | Fuel supply for farm machinery | Lightweight design preserves soil integrity |
| Mining Operations | On-site fuel storage and transport | Explosion-proof valves ensure safety in hazardous zones |
| Emergency Services | Mobile fuel supply during disasters | Rapid discharge (1,800 L/min) via 4" valves |
| Renewable Energy | Biofuel transport (e.g., biodiesel) | Aluminum compatibility with corrosive fuels |
2024 Market Trends:
Decentralized Fuel Networks: Ideal for last-mile delivery in emerging markets.
Carbon Reduction Goals: 22% lower carbon footprint vs. steel trailers.
Competitive Edge:
Weight Savings: 3,500 kg lighter than steel alternatives, enabling higher payloads.
Safety Compliance: Full ADR 2019 certification for European hazardous material transport.
Aluminum Alloy Benefits: 50% lighter than steel while maintaining comparable strength, reducing fuel consumption by 18%.
Structural Integrity: Reinforced crossmembers (420mm height) withstand 4.5 bar pressure during hydrostatic tests.
ADR Compliance: Double-walled construction, grounding systems, and explosion-proof valves.
Emergency Shutoffs: Automatic valve closure during pressure anomalies.
Fast Turnaround: 98% discharge efficiency leaves <0.1% residual fuel.
Low Maintenance: Non-corrosive materials reduce annual upkeep costs by 30% vs. steel trailers.
Recyclability: 85% of materials are recyclable, aligning with circular economy principles.
Emissions Reduction: Lightweight design cuts CO2 emissions by 12 tons/year per unit.
Compartmentalization: Up to 6 compartments for multi-product transport.
Smart Logistics: Real-time telematics integration with fleet management systems.
Weekly: Check valve seals and grounding systems.
Monthly: Ultrasonic thickness tests on tank walls (minimum 4.5mm).
Post-diesel transport: Flush with alkaline solutions to remove sulfur deposits.
Avoid abrasive cleaners on aluminum surfaces.
Use low-viscosity diesel additives below -20°C.
Insulate exposed pipes with neoprene sleeves.
Reapply electrophoretic coating every 5 years.
Replace rubber hoses biannually (ozone resistance >8 years).
A: Yes. The 5083 aluminum alloy resists corrosion from ethanol (E10–E15 blends). Specify ethanol-compatible seals during ordering.
A: Operators typically achieve breakeven in 18–24 months through:
22% fuel savings from weight reduction.
15% lower maintenance costs.
A: Absolutely. Request stainless steel fittings and dedicated compartments to prevent cross-contamination.
A: Each trailer undergoes:
Hydrostatic testing at 1.5x working pressure.
3D laser alignment for axle positioning.
A: Yes. Choose between PTO-driven or standalone electric pumps (up to 2,200 L/min).
HUAYU’s tanker aligns with three transformative logistics trends:
Digital Twins
Virtual replicas optimize maintenance schedules using real-world performance data.
Autonomous Convoy Readiness
Pre-installed SAE Level 4 interfaces for platooning.
Blockchain Traceability
Fuel provenance tracking from refinery to end-user.
Shandong Huayu’s Aluminum Alloy 3 Axles 50000L Diesel Oil Tanker Semi Trailer redefines fuel logistics through innovation, safety, and sustainability. Whether servicing remote mining sites or urban fuel networks, this trailer delivers unparalleled efficiency while meeting stringent global standards.
Contact HUAYU today to explore customization options and request a tailored quote for your fleet upgrade!
