The 3 Axles Side Wall Trailer is designed to handle a variety of cargo types, from construction materials to industrial equipment and agricultural products. With high-strength steel construction, reinforced suspension, and customizable configurations, this trailer ensures efficient and secure transportation across different industries.
| Specification | Details |
|---|---|
| Tare Weight | About 7.5T |
| Dimension (mm) | 12500 × 2500 × 3260 |
| Trailer Sides | 1250mm |
| Loading Capacity | ≤60T |
| Axles | 3 axles, 13T/16T, FUWA/BPW/ZY Brand |
| Tire | 12.00R22.5 |
| Rim | 9.00-22.5 or 9.75-22.5 |
| Suspension | Mechanical suspension |
| King Pin | JOST brand 2.0 or 3.5 inch (bolted/welded) |
| Landing Gear | JOST Brand |
| Main Beam | Q345B steel |
| Side Beam | 16# channel steel |
| Braking System | WABCO RE6 relay valve, T30/30 spring brake chamber, 40L air tanks |
| Painting | Complete chassis sandblasting, 1 coat of anticorrosive primer, 2 coats of final paint |
| Twist Locks | 4, 8, or 12 sets |
| ABS | Optional |

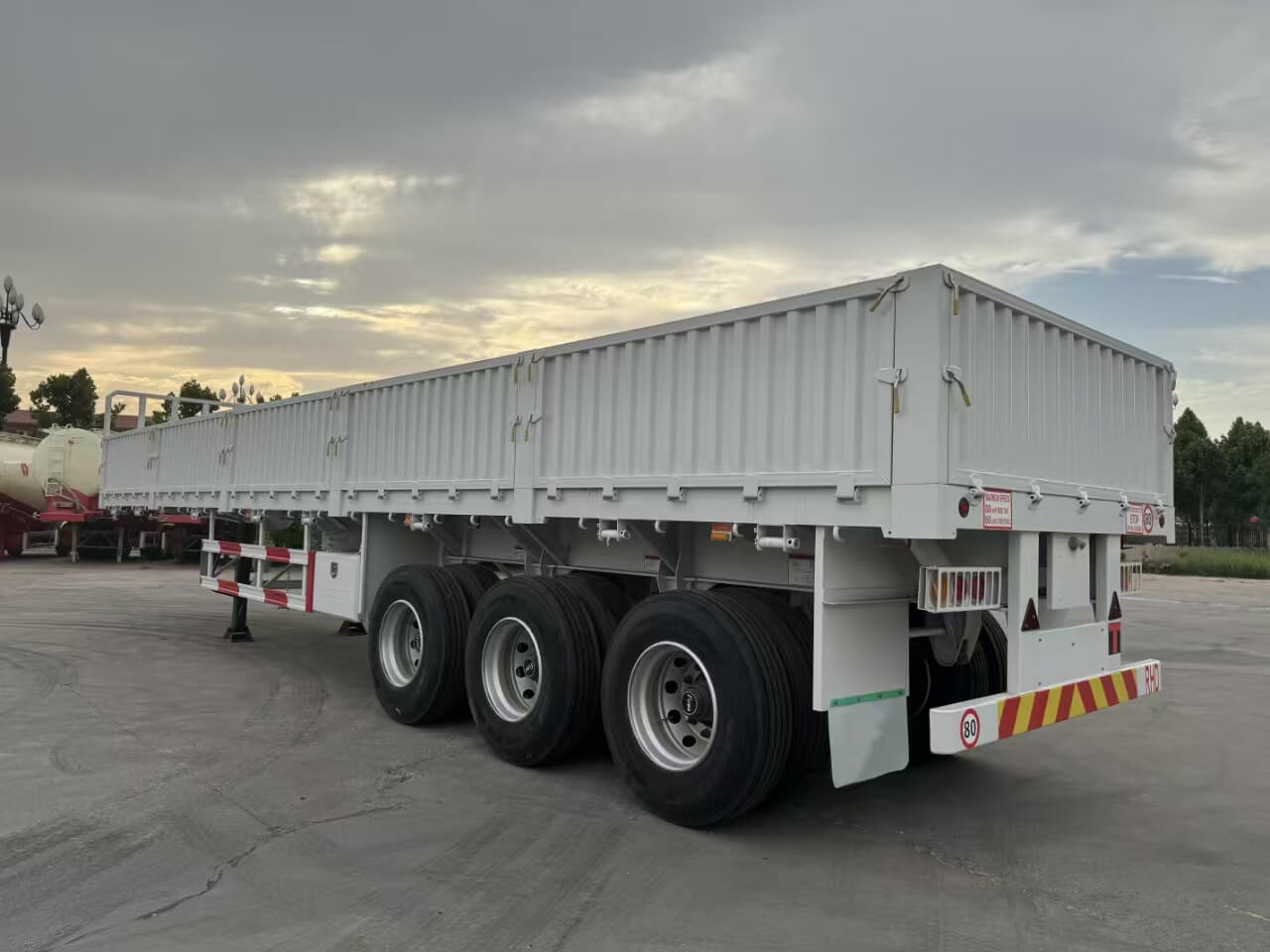

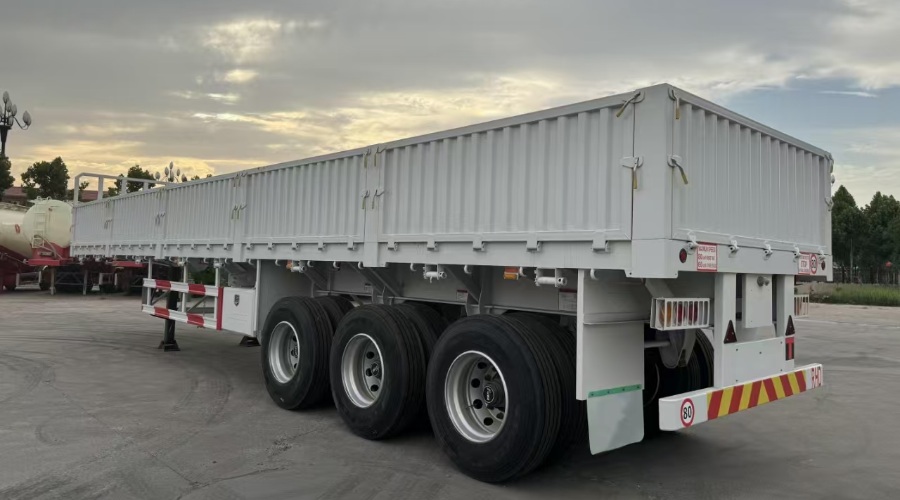

3 Axles side wall trailer imges

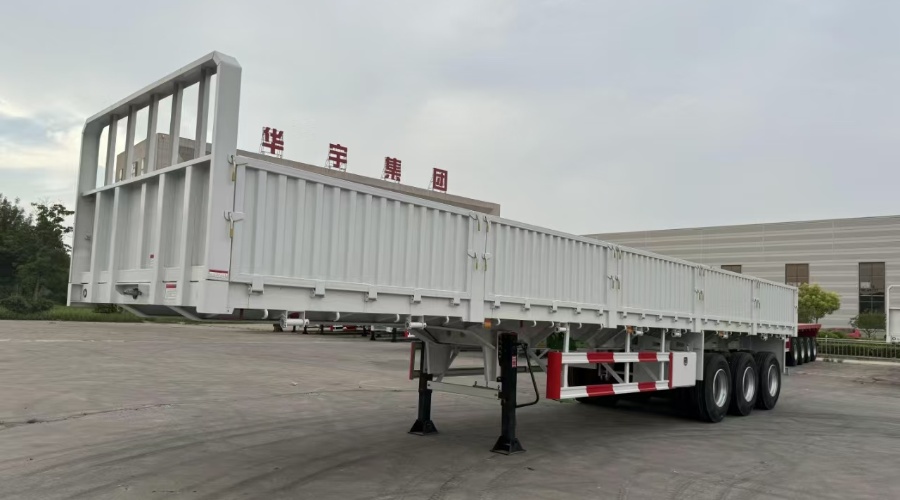

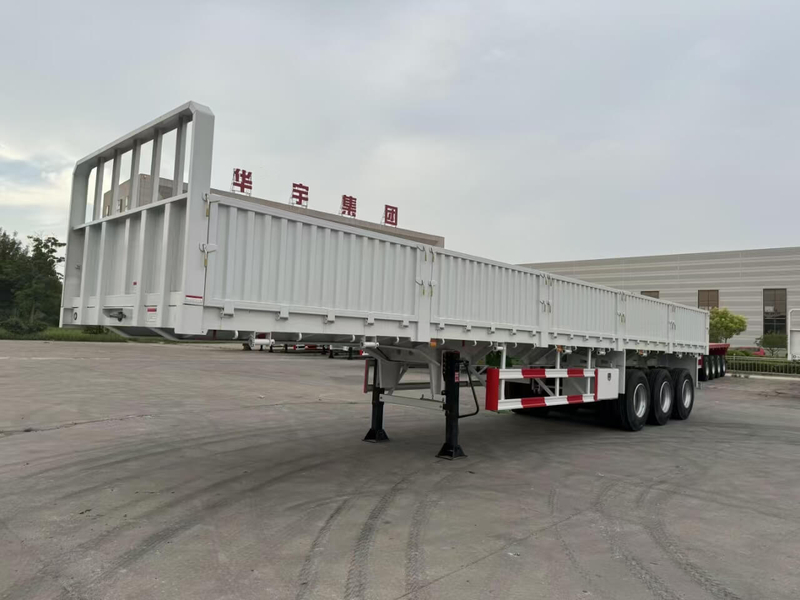

3 Axles side wall trailer for sale

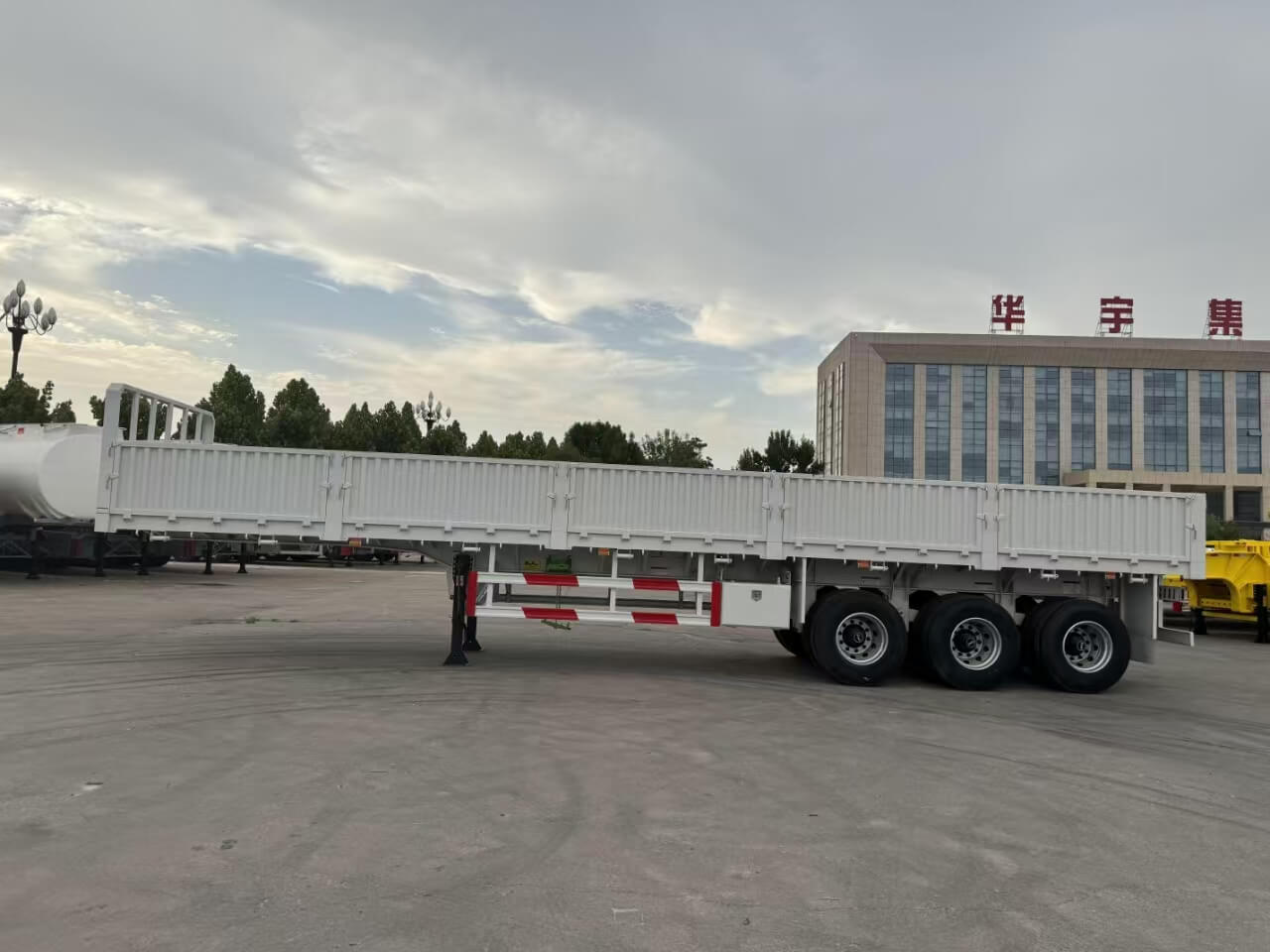

3 Axles side wall trailer manufacturer

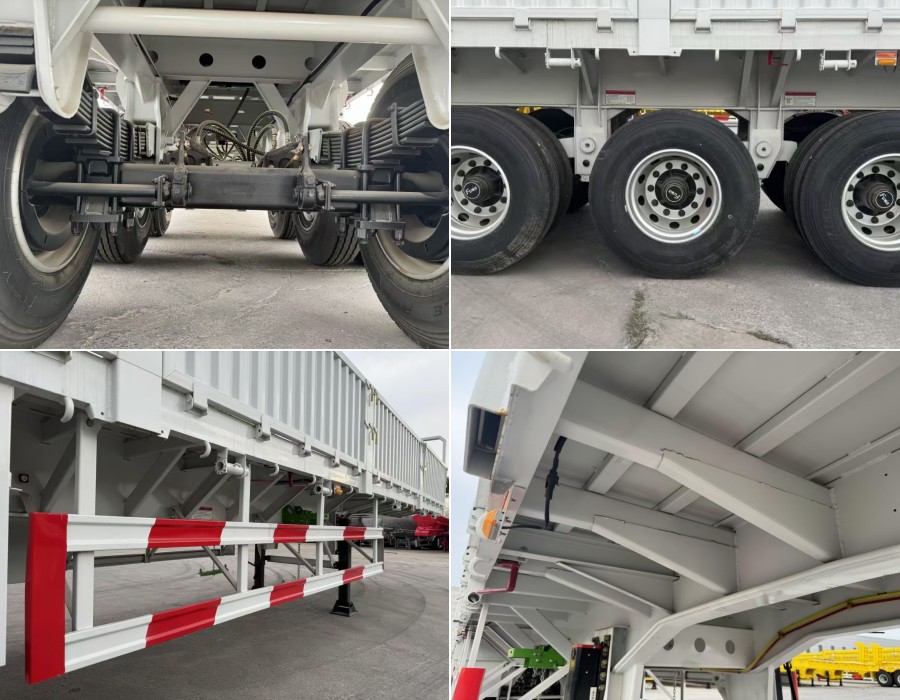

3 Axles side wall trailer detail drawing
Q345B steel main beam enhances structural durability for long-term use.
1250mm high reinforced sidewalls prevent cargo from falling or shifting.
Anti-corrosive paint and full chassis sandblasting extend the trailer’s lifespan.
3 axles (13T/16T) from FUWA, BPW, or ZY brands for heavy load support.
Robust mechanical suspension ensures smooth performance on rough roads.
JOST brand kingpin & landing gear for secure attachment and parking stability.
Optional twist locks (4, 8, or 12 sets) to transport containers securely.
ABS braking system available for enhanced road safety.
Different tire and suspension configurations to meet specific transport needs.
WABCO braking system for responsive stopping power.
T30/30 spring brake chamber and 40L air tanks ensure optimized braking performance.
Sidewall height customization for different types of cargo.
Construction: Transport steel, wood, bricks, and heavy materials.
Agriculture: Suitable for grain, farm equipment, and feed transport.
Mining & Industrial: Carry machinery, tools, and raw materials securely.
General Logistics: Efficiently move bulk goods and containerized cargo.
✅ Reliable Heavy-Duty Performance – Built for high-capacity loads.
✅ Customizable for Various Transport Needs – Adaptable for different industries.
✅ Durable & Long-Lasting – Q345B steel and anti-rust coating for extended life.
✅ Safety First – WABCO braking system, sturdy axles, and mechanical suspension.
