Lowbed trailer series products are suitable for a variety of mechanical equipment, large objects, highway construction equipment, power plant equipment and various steel transportation, a wide range of uses, low center of gravity and high safety. HUAYU has a professional lowbed trailer designer, according to user requirements to design the frame bearing surface, to meet the transportation of various special goods.

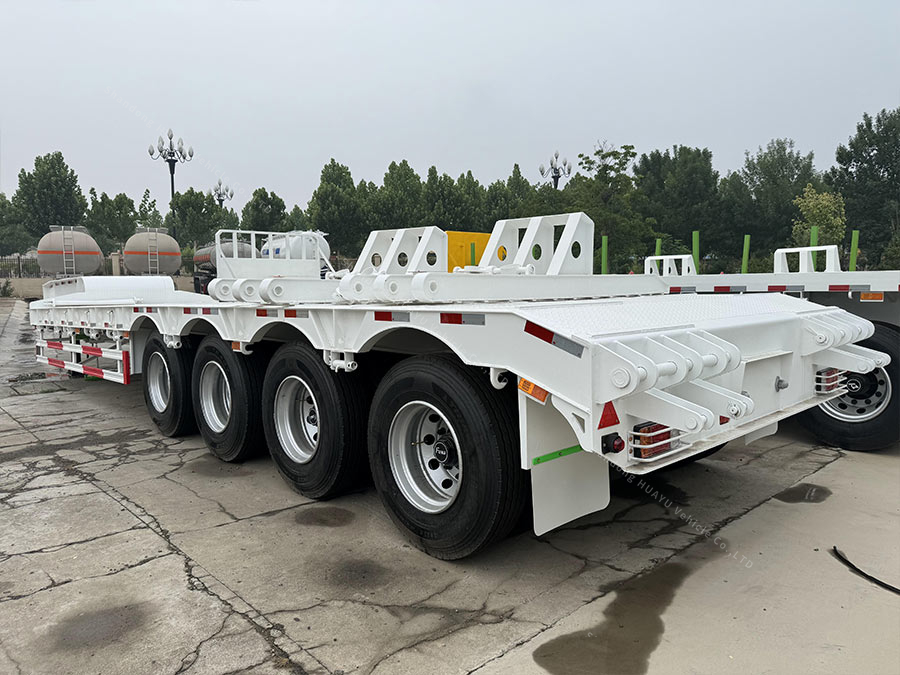

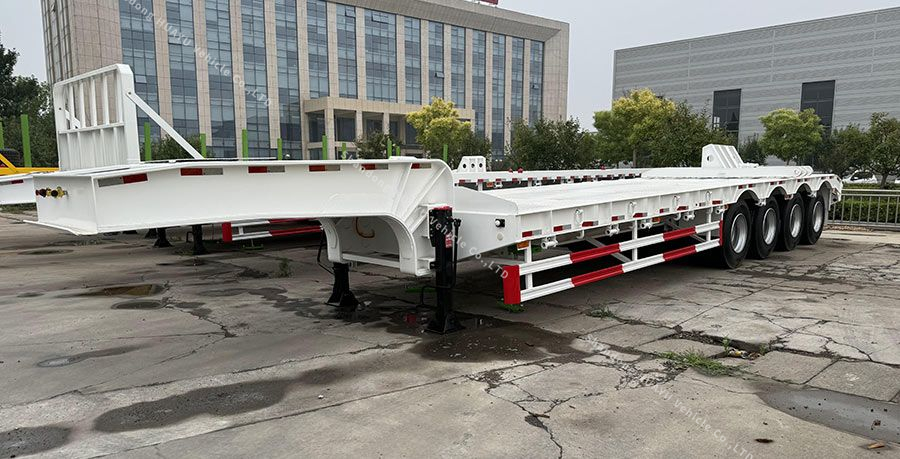

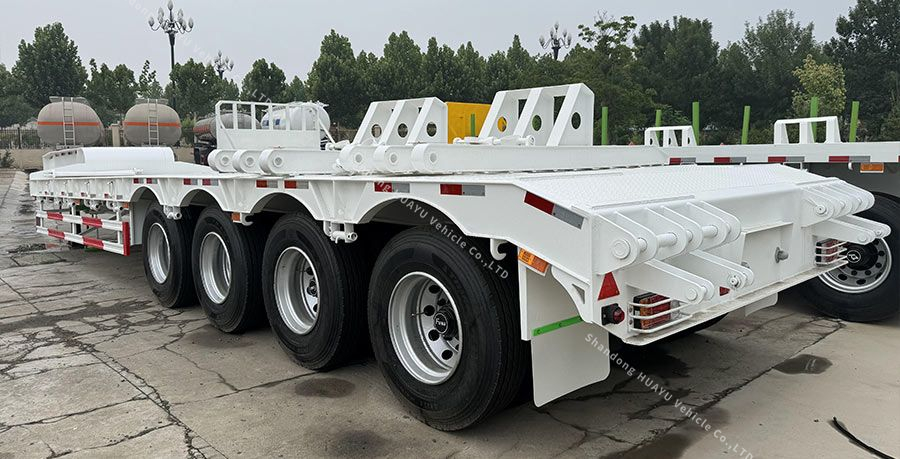

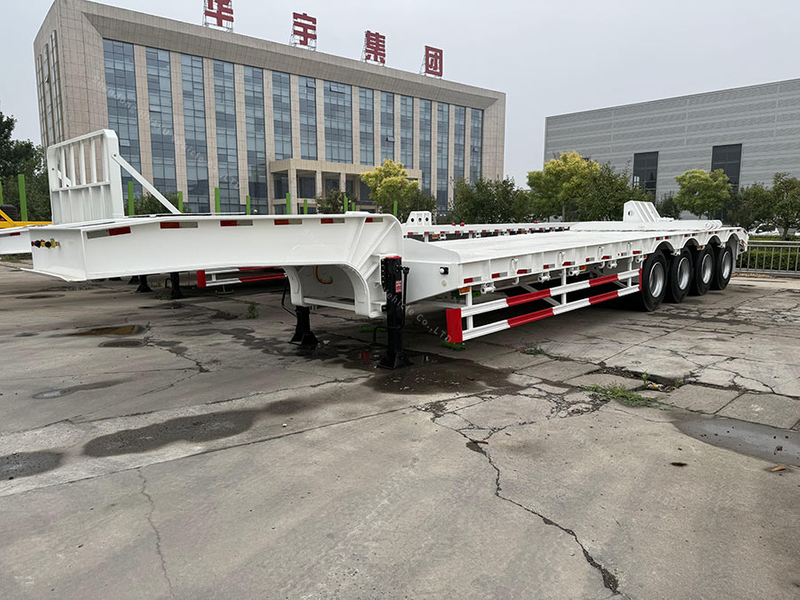

4 Axles 100Ton Lowbed Trailer For Sale
4 Axles 100Ton Lowbed Trailer Detail

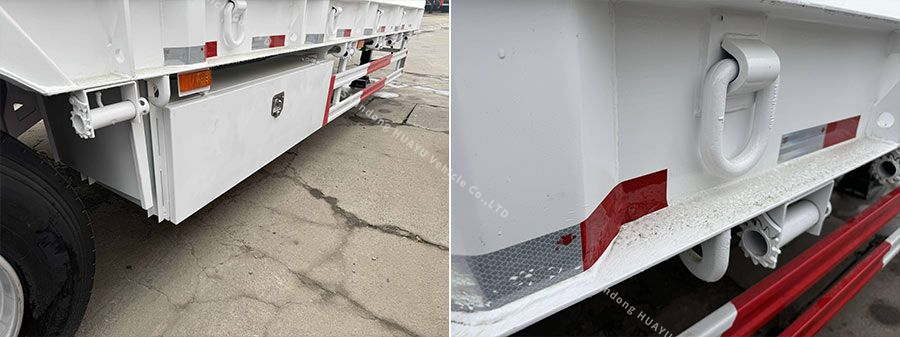

Install D rope ring, rope dog and rope tightener according to customer's requirements, which is convenient for customers to fix goods
Dimension: 15000mmx3000mmx1500mm(customizable)
Loading capacity: 100Ton

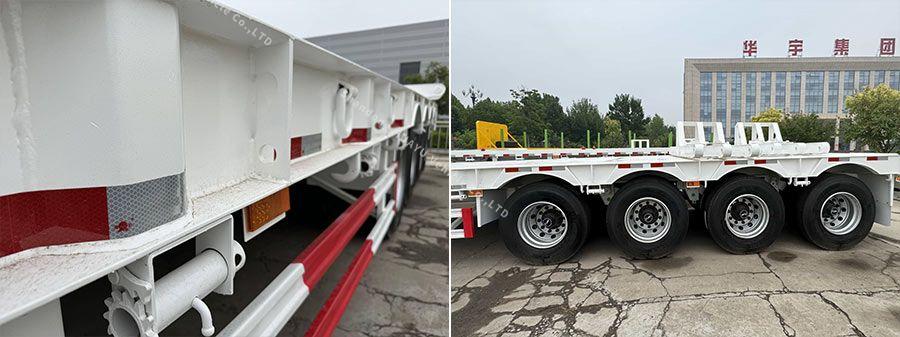

Axle: 13T/16T, FUWA / BPW Brand
Tire: 11.00R20、12R22.5、315/80R22.5
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)

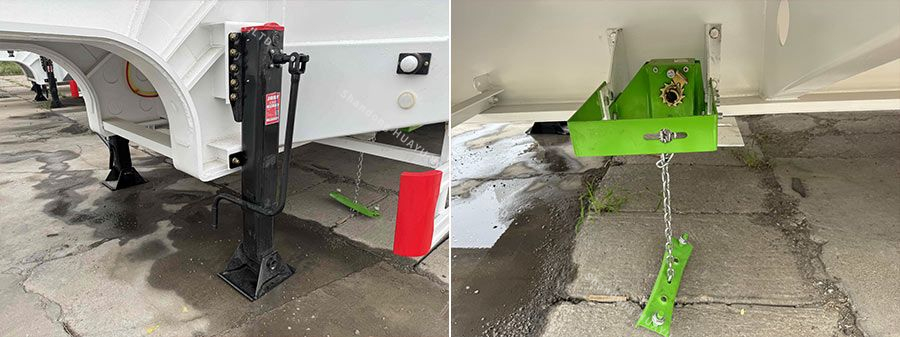

Landing gear: JOST/FUWA brand
Main beam: Height: 500mm(Q690B/T700)
Upper plate: 20mm
Middle plate: 12mm
Lower plate: 20mm

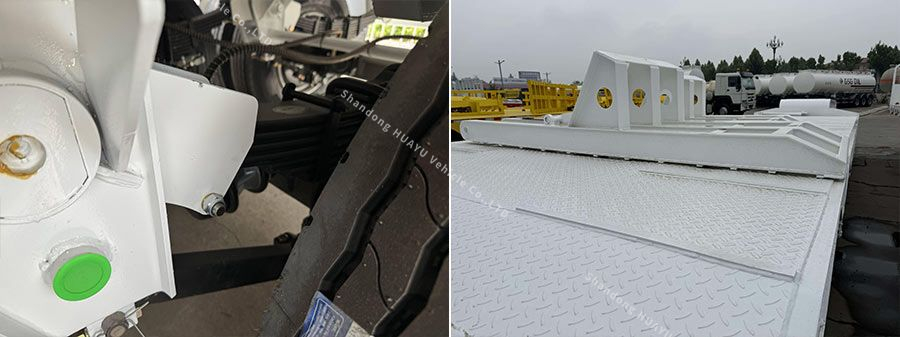

Bottom Platform: 5mm thick checkered plate
ABS: Optional
Valve: WABCO valve
4 Axles 100Ton Lowbed Trailer Manufacturer
With a 100-ton payload capacity, this trailer outperforms competitors like the 60T Sinotruk model (Link 2) and 80T LUYI trailer (Link 1). Its main beam is constructed from Q345B carbon steel, ensuring exceptional strength and resistance to deformation under extreme loads. Unlike standard trailers, Huayu’s design incorporates reinforced side beams (20# channel steel) and a 4mm diamond-patterned deck plate, providing unmatched stability for heavy equipment transport.
Huayu offers extensive customization options, surpassing the limited choices in Link 3 and Link 5. Clients can specify:
Axle configurations: 13T/16T FUWA or BPW axles
Suspension types: Mechanical leaf spring or air suspension
Deck height adjustments: 700mm–1200mm (vs. fixed 3850mm height in Link 2)
Hydraulic systems: Optional automatic ladders and gooseneck designs
The trailer integrates a WABCO dual-line braking system with 45L air tanks and ABS compatibility, exceeding the RE6 relay valves used in Link 4. This ensures reliable braking performance even with maximum loads, complemented by LED lighting systems and 12R22.5 puncture-resistant tires.
As a Shandong-based manufacturer (Links 1–5 highlight Shandong’s dominance in trailer production), Huayu leverages local steel supplies and streamlined processes to offer pricing 15–20% below European equivalents. The trailer’s modular design also reduces maintenance costs, with interchangeable components like JOST kingpins and standardized 28T landing gear.
Huayu’s trailers meet CE standards and include ISO 9001 certification, addressing critical requirements for African, South American, and Southeast Asian markets (as evidenced by buyer demographics in Link 2 and Link 5). Optional sandblasting and anti-corrosive coatings ensure longevity in harsh climates.
| Feature | Huayu 100T | LUYI 80T (Link 1) | AOTONG 80T (Link 4) |
|---|---|---|---|
| Axle Options | 4 axles (13T/16T) | 3–4 axles | Fixed 13T axles |
| Deck Height | Adjustable (700–1200mm) | Fixed 1200mm | Fixed 1100mm |
| Price Range | $18,000–$25,000 | $15,800–$22,000 | $22,000+ |
A: Standard orders ship within 25–35 days. Customizations requiring hydraulic modifications or special coatings may extend lead time by 7–10 days.
A: We implement a 3-stage inspection process: raw material testing (ASTM A36 compliance), pre-assembly weld checks, and final load-bearing tests at 110% rated capacity.
A: Our warranty covers:
12 months on main beams and kingpins
6 months on axles and suspension
3 months on brake chambers
Spare parts are stocked in regional warehouses in Mombasa, Dubai, and Rotterdam.
A: Yes. Optional features include:
All-terrain tires (315/80R22.5)
Reinforced D-rings for cargo securing
Air suspension upgrade for uneven terrain
A: We accept:
30% T/T deposit, 70% before shipment
LC at sight (SWIFT-approved banks only)
Alibaba Trade Assurance
Shandong Huayu’s 4 Axles 100Ton Lowbed Trailer stands as the optimal choice for heavy transport, combining Shandong’s manufacturing expertise with globally compliant engineering. Its customizable design, safety features, and competitive pricing address the core needs observed across Alibaba listings (Links 1–5), while superior payload capacity positions it above regional competitors.
If you are interested in our 4 axles 100Ton lowbed trailer please contact us by leaving a comment below!
