Global logistics networks are operating under immense pressure. Supply chains must execute with relentless efficiency to maintain tight profit margins. At the core of this intricate intermodal transport network lies specialized equipment built to move goods seamlessly across vastly different environments. Serving as the backbone of modern freight, the transport chassis is purposefully engineered to carry shipping containers and ensure cargo arrives intact. Fleet drivers navigate chaotic maritime terminals and manage long-haul highway routes daily. Understanding the anatomy and application of these vehicles is not merely academic. It is a critical procurement decision. Selecting the right equipment directly impacts your operational throughput, safety compliance, and long-term profitability.

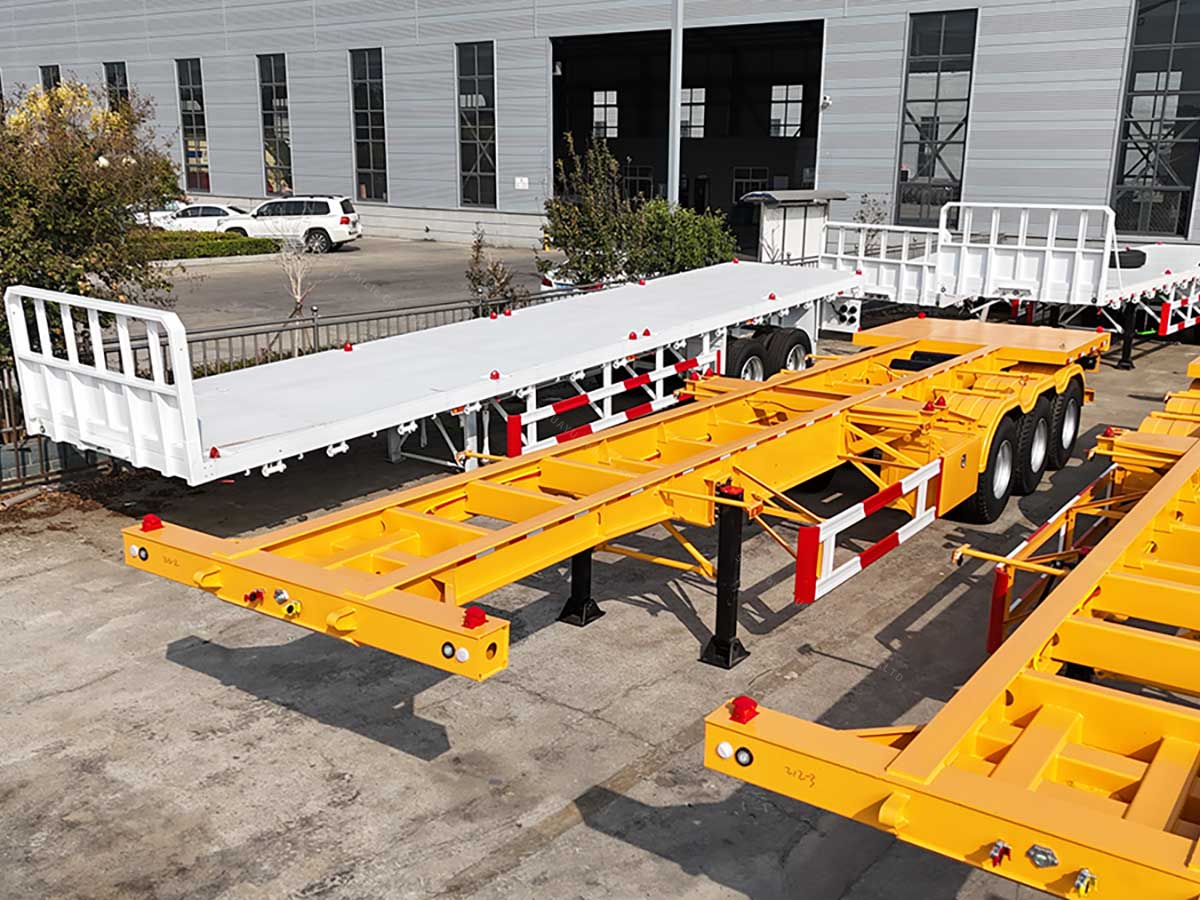

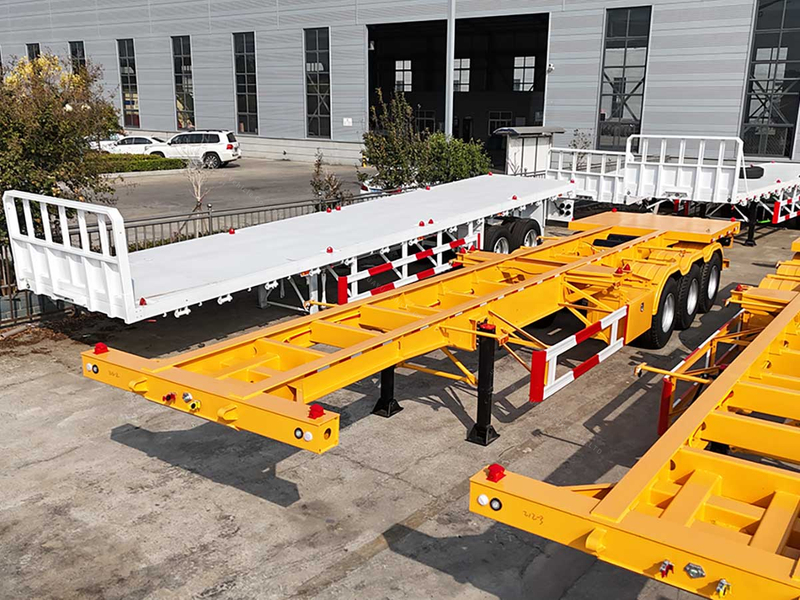

This transport vehicle operates on a fundamental engineering principle. It combines structural minimalism with immense load-bearing capacity. Unlike conventional flatbed or dropside vehicles featuring solid steel or reinforced wooden decks, this specialized unit relies entirely on an open, high-strength steel framework. The anatomy consists primarily of longitudinal main I-beams, robust cross members, an undercarriage suspension system, axles, and landing gear. Manufacturers deliberately strip away the floor to drastically reduce the overall tare weight. A critical functional characteristic of this skeletal structure is the integration of standardized container twist locks. These mechanical locking devices are strategically welded to the corners and midsections of the skeleton trailer. When a massive shipping crane lowers a 30-ton container onto the frame, these locks precisely engage with the corner castings. This forms a rigid, unified entity that prevents shifting during high-speed transit.
In professional logistics and fleet procurement terminology, regional dialects often lead to interchangeable names. The term "chassis" denotes the primary load-bearing framework supporting the cargo. The designation "semi trailer" indicates that the vehicle lacks a front axle. Instead, it relies on a motorized tractor unit coupled via a kingpin to support the forward portion of its weight. Consequently, a container chassis semi trailer is the formal industry identifier for this equipment. The colloquial term "skeleton" simply describes its bare-bones, open-frame appearance. Grasping these technical terms is essential for fleet managers navigating international procurement markets.
When fleet operators look to expand their asset list, they frequently debate between purchasing a multi-purpose flatbed or a dedicated framework. The primary architectural distinction lies in the load-bearing surface. Flatbeds are equipped with a continuous, heavy-duty floor designed to carry diverse, non-standardized loads like heavy machinery or steel coils. In contrast, the skeletal variant utilizes an open-air framework. Because the shipping container itself acts as a rigid structural box, a solid trailer floor is entirely redundant. It only adds unnecessary dead mass to the vehicle.
Flatbeds excel in mixed-fleet operations where operational versatility is the primary objective. If a logistics provider hauls bulk construction materials one day and an ISO container the next, a flatbed prevents the equipment from sitting idle. Conversely, for dedicated container logistics, the skeletal design is objectively superior. Port drayage operators and intermodal freight companies exclusively moving standardized 20ft, 40ft, or 45ft containers require purpose-built equipment to maximize legal payload limits.
Empirical data heavily favors the skeletal design for dedicated container routes. The reduction in structural material directly translates to increased legal payload capacity and measurable fuel efficiency over long distances. Furthermore, the absence of a deck lowers the initial manufacturing cost.
| Specification | Standard 40ft Flatbed Trailer | Standard 40ft Skeletal Trailer |
|---|---|---|
| Floor Structure | Solid steel plate or hardwood | Open high-tensile steel framework |
| Average Tare Weight | 7,000 kg – 8,500 kg | 4,500 kg – 5,500 kg |
| Primary Application | Mixed freight, machinery, bulk goods | Dedicated ISO shipping containers |
| Fuel Efficiency | Lower due to higher tare weight and drag | Higher due to optimized weight reduction |
| Initial Procurement Cost | Generally Higher | Generally Lower |
Picture a bustling maritime terminal. Massive ship-to-shore cranes drop heavy containers every two minutes. In this high-stakes environment, precision and maneuverability are paramount. A port skeleton trailer is tailored precisely for these chaotic conditions. Terminal managers often favor 2-axle models in these settings because they offer a tighter turning radius in congested container yards. The exposed chassis design allows operators to quickly align the container's corner castings with the chassis twist locks. This design efficiency significantly minimizes turnaround times at the dock.
The efficiency of these units extends seamlessly into rail yard intermodal transfers. When freight trains arrive at inland depots, cargo must be rapidly moved from railcars to road transport. Skeletal trailers facilitate rapid lift-on and lift-off operations. The structural integrity of the trailer's cross members ensures that the sudden kinetic impact of a descending heavy container is safely absorbed. This keeps the supply chain moving without bottleneck delays.
Once clear of the port terminal or rail yard, the container must be transported over regional or national highway networks. Long-haul transport introduces complex variables such as aerodynamic drag, crosswinds, and strict weigh-station compliance. Skeletal trailers offer distinct aerodynamic advantages over empty flatbeds, reducing wind resistance when traveling without a load. Specific axle placements ensure highway stability and strict compliance with regional weight limits.
The intermodal transport sector is currently undergoing a massive shift toward smart, lightweight logistics solutions. Global supply chains face intense regulatory pressure to slash carbon emissions and boost overall fuel economy. Consequently, fleet managers are pivoting to aerodynamic chassis crafted from advanced metallurgical composites. We are witnessing a rapid phase-out of older, heavy carbon steel frames. Ultra-lightweight high-tensile steel is rapidly becoming the baseline for sustainable port operations. Furthermore, the integration of smart telematics is no longer a luxury. Features like real-time GPS tracking, electronic braking systems, and automated tire pressure monitoring are standardizing across fleets. This data-driven approach minimizes unexpected roadside downtime and optimizes route planning across congested highway networks.
The 2-axle 40-foot model represents the standard workhorse for local terminal-to-terminal drayage and short regional runs. By utilizing only two axles, fleet operators reduce tire replacement costs and lower toll fees in certain jurisdictions. This setup achieves superior agility in tight urban environments. Typically featuring a tare weight around 4,500 kg, this configuration is highly cost-effective for transporting standard-weight consumer goods.
Heavy-duty highway transport demands robust engineering. Operators frequently rely on a container chassis semi trailer equipped with three axles to ensure compliance with strict highway regulations. The addition of a third axle distributes the payload weight more evenly across the pavement. This reduces the strain on individual tires and suspension components. Offering payload capacities up to 40 tons, it is the ideal specification for long-haul routes carrying dense industrial cargo or liquids.
Beyond standard 40-foot lengths, specialized variations exist to accommodate specific cargo constraints. Shorter 20-foot chassis are utilized exclusively for single Twenty-foot Equivalent Unit containers, offering unmatched agility in tight urban delivery spaces. In contrast, gooseneck designs feature a stepped-down frame at the front. This structural modification lowers the overall height of high-cube containers. It ensures safe clearance under low bridges and mitigates rollover risks by significantly lowering the center of gravity.
The metallurgical composition of the chassis dictates its longevity, safety, and load-bearing capacity. Procurement specifications should mandate the use of high-tensile steel, such as Q345 or T700. These advanced alloys provide an exceptional strength-to-weight ratio. They allow manufacturers to optimize the thickness of the main I-beams without sacrificing structural integrity. This prevents chassis warping under heavy dynamic loads while keeping the overall tare weight to an absolute minimum.
Securing the cargo is the most critical safety aspect in logistics. High-quality, ISO-standard twist locks are a non-negotiable feature. A standard unit is typically equipped with 4 to 12 twist locks, allowing it to secure either a single 40ft container or two 20ft containers simultaneously. Buyers must ensure these locking mechanisms are forged from heavy-duty steel. Robust locking pins are required to resist the immense shear forces generated during sudden braking or evasive highway maneuvers.
The undercarriage components dictate ride quality, cargo safety, and maintenance frequency. Mechanical leaf spring suspensions remain the industry standard due to their rugged reliability and cost-effectiveness in harsh operating environments. However, fleets transporting sensitive electronics may opt for air ride suspensions to provide superior shock absorption. Sourcing axles from globally recognized brands ensures consistent braking performance and widespread availability of replacement parts.
The procurement decision must be rooted in an empirical analysis of your fleet's operational data. Are your drivers primarily executing short port runs, or are they navigating cross-country trips? Short-distance drayage on flat terrain with standard-weight loads strongly favors a 2-axle port skeleton trailer for its agility and lower operating cost. In contrast, interstate routes carrying maximum allowable weights necessitate a 3-axle setup to guarantee regulatory compliance and highway stability.
Astute logistics operators look far beyond the initial sticker price. Evaluating the Total Cost of Ownership involves factoring in long-term operational expenses. A lighter skeletal frame yields compounding dividends in fuel savings over its operational lifespan. Buyers should rigorously calculate projected tire wear, brake pad replacement intervals, and fuel consumption metrics. A slightly higher upfront investment in premium components often results in significantly lower maintenance costs over a ten-year lifecycle.
Leading manufacturers offer extensive customization capabilities to align the equipment with specific regional logistics requirements. This includes variable kingpin placements, custom wheelbase dimensions to comply with local bridge laws, and specialized electrical systems. For fleets operating extensively in coastal environments, requesting advanced surface treatments is crucial. Marine-grade polyurethane paint or hot-dip galvanization is a prudent investment to combat rapid saltwater corrosion.
Preventative maintenance is the absolute cornerstone of fleet reliability. Twist locks endure immense kinetic stress and must be inspected on a strict schedule. Technicians should verify that the lock handles rotate smoothly and that the locking heads show no signs of deformation or severe abrasion. Additionally, the main I-beam welds and cross-member joints must be visually inspected for hairline fractures. Pay special attention to high-stress zones near the landing gear and axle hangers.
Operating in intermodal environments exposes the equipment to unique environmental hazards. Trailers frequently deployed near maritime seaports are highly susceptible to galvanic corrosion from saline moisture. Routine power washing of the undercarriage is mandatory to remove corrosive salt deposits and road grime. Furthermore, maintaining precise tire pressure is critical. Underinflated tires on a fully loaded chassis lead to rapid tread wear, decreased fuel economy, and a drastically increased risk of a catastrophic blowout.
The skeleton trailer remains an indispensable, highly efficient tool driving the modern logistics industry forward. By deliberately stripping away unnecessary weight and focusing on purposeful engineering, these vehicles offer unmatched payload capacity and operational flexibility. As you evaluate your fleet expansion, carefully base your choice between 2-axle and 3-axle configurations on your specific multimodal needs. Whether you are dominating tight port terminals or cruising long highway expanses, selecting the right equipment is paramount. We encourage you to browse our extensive catalog of high-quality chassis solutions. Discover the perfect brand and product match for your operations at Huayu Vehicle, or contact our expert sales team today for a customized quote tailored to your exact operational requirements.
The maximum payload capacity depends heavily on the structural design and the number of axles. A standard 3-axle chassis can typically handle payloads ranging from 30 to 40 tons safely. Heavy-duty customized models can push this limit even higher. Meanwhile, 2-axle models are designed for slightly lighter loads. It is imperative that fleet operators always verify and adhere to local highway weight regulations to avoid fines and ensure safe transport.
Yes, versatility is a hallmark feature of these vehicles. Standard 40ft skeleton trailers are usually equipped with 8 to 12 strategically placed twist locks. This flexible configuration allows operators to carry either one single 40ft container or two separate 20ft containers simultaneously. This provides excellent adaptability for mixed-load dispatching.
A specialized skeleton unit is significantly lighter, generally more affordable to procure, and far more fuel-efficient. It is specifically engineered with built-in twist locks to secure containers rapidly and safely. Flatbeds carry unnecessary dead weight from their solid decks. This reduces fuel efficiency and payload capacity if the vehicle is exclusively hauling shipping containers.
Container twist locks utilize a simple yet highly robust manual or pneumatic mechanism. The lock head is inserted into the standardized corner castings of the shipping container. Once in place, the mechanism is rotated 90 degrees, locking the container securely to the steel framework. This prevents any vertical or horizontal movement during transit, ensuring the load remains completely stable even under heavy braking.
A straight frame maintains a uniform deck height from front to back, which is standard for most shipping containers. A gooseneck chassis features a stepped-down section near the front kingpin. This specific design lowers the overall deck height, accommodating High Cube containers while remaining compliant with strict highway bridge clearance regulations.
Twist lock longevity depends on operational frequency and environmental exposure. As a general engineering rule, inspect twist lock mechanisms monthly for shear stress, bending, or severe rust. While the forged steel housing can last the lifetime of the trailer, the internal pins and springs typically require replacement every 3 to 5 years to ensure uncompromised cargo security.
