In heavy-duty logistics, structural integrity is entirely non-negotiable. You are moving 60 tons of cargo. Whether hauling bulk grain, heavy construction materials, steel coils, or large-scale agricultural products, engineering errors are unacceptable. A single weak point in the frame can lead to catastrophic failure.
The chassis serves as the fundamental backbone of any heavy-duty transport vehicle. If the main and side beams are incorrectly configured, the equipment faces severe risks. Mid-frame sagging, structural twisting, and weld fractures become inevitable under a full load. This comprehensive guide breaks down the exact engineering specifications, material selections, and design configurations required to build a resilient frame. By understanding these structural parameters, fleet operators can ensure their equipment maintains high safety standards, long-term durability, and strict regulatory compliance.
Looking at recent developments in the heavy-duty transportation sector, there is a distinct global shift toward optimizing payload-to-tare-weight ratios. As fuel costs fluctuate and road weight regulations tighten, fleet operators demand trailers that maximize cargo capacity without adding unnecessary dead weight.
Consequently, relying on bulky, low-grade carbon steel is no longer viable. Engineering precisely cambered I-beams using advanced high-yield alloys has become a focal point for leading manufacturers. This modern approach allows engineers to trim excess steel while maintaining a rigid 60-ton load rating, directly improving fuel efficiency and increasing profit margins per trip.
Static weight is only a fraction of the engineering challenge. When a trailer is loaded with 60 tons of cargo, the chassis experiences immense downward vertical force. However, when the vehicle is moving at highway speeds, kinetic energy fundamentally transforms how that weight interacts with the steel frame. Every pothole, speed bump, and road undulation sends violent shockwaves directly through the chassis.
Engineers must account for dynamic multipliers. Braking sharply, taking tight turns, or traversing uneven terrain can temporarily multiply the stress on specific sections of the frame. For instance, imagine slamming the brakes at 80 kilometers per hour with a full load of steel coils. The kinetic energy shifts violently forward, placing immense shearing force on the kingpin and the front section of the main beams.

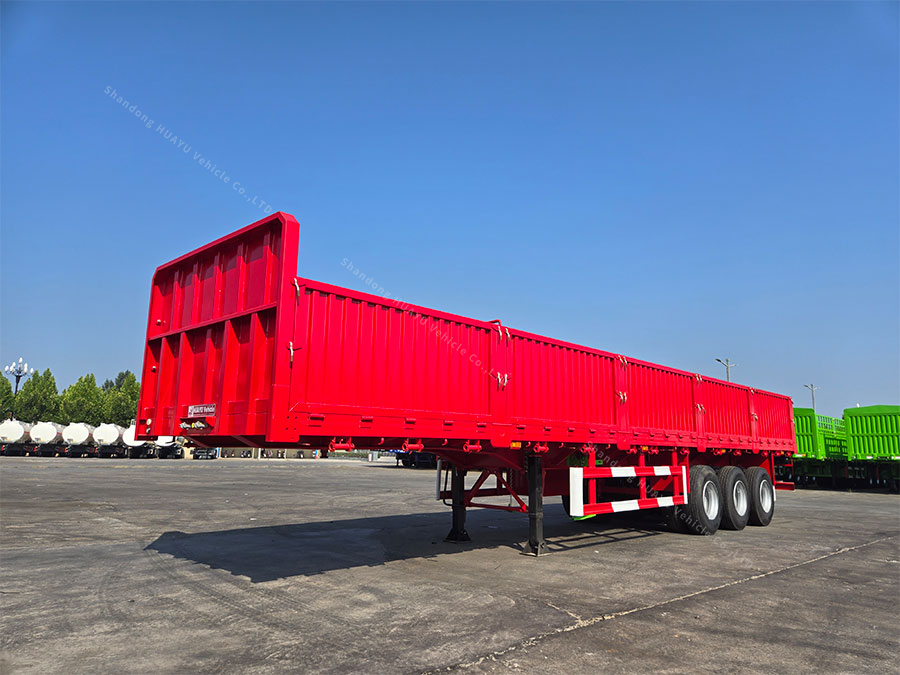

To survive these dynamic forces, a high capacity side wall trailer relies entirely on a unified structural grid. The main beams, side beams, and cross members must work in unison. If one component is undersized or improperly welded, the stress transfers to the next weakest point. This inevitably leads to metal fatigue and structural failure.
The I-beam shape remains the undisputed industry standard for heavy-duty trailers. This specific geometry consists of two horizontal flanges, namely the upper and lower plates, connected by a vertical web plate. This design offers an exceptional strength-to-weight ratio. It provides maximum resistance to bending and shearing forces while keeping the tare weight of the vehicle manageable.
Configuring the main beam requires specific, non-negotiable measurements. Undersizing these plates leads to dangerous sagging. Oversizing them unnecessarily increases fuel consumption. Based on rigorous engineering standards, the ideal configuration includes:
Main beams are rarely manufactured perfectly flat. Instead, they are engineered with a slight upward curve known as camber, typically bowing upward by 10mm to 20mm in the center. When the trailer is empty, this bow is visible to the naked eye. Furthermore, when loaded with 60 tons, the downward force pushes the beams down, causing them to flatten out perfectly. Without this pre-engineered camber, a fully loaded trailer would sag in the middle, putting dangerous stress on the axles and tires.
While the main central beams carry the bulk of the weight, the side beams frame the perimeter of the transport platform. They provide a vital mounting point for the vertical side walls and support cargo loaded near the outer edges of the trailer bed. Without robust side beams, the outer edges of the floor would be highly vulnerable to bending.
Side beams face significant lateral and vertical stress during transit. Industry standards typically utilize heavy-duty channel steel, such as 16# or 18# channel profiles, for 60-ton capacities. In contrast, some budget manufacturers utilize folded steel profiles to save weight. However, standard channel steel provides far superior rigidity against side impacts and shifting cargo.
Configuring the side beams properly is exactly what allows for a truly reinforced side wall semi trailer. The side beams must feature reinforced stake pockets and robust hinges. When transporting loose bulk cargo like gravel or grain, the outward pressure against the side walls is immense. If the side beams are weak, the fixed walls will bulge outward, potentially breaking their hinges and spilling cargo onto the roadway.
Main beams and side beams cannot function independently. They must be tied together to form a rigid structural grid. Cross members serve this exact purpose. They intersect the main beams and connect to the side beams, efficiently transferring the load from the outer edges of the trailer directly into the central load-bearing structure.
For a heavy payload, the spacing of these cross members is a critical configuration metric. Cross members should be spaced closely together, typically every 500mm or less. If the spacing is too wide, the steel floor plates will lack adequate support and will eventually warp under the localized pressure of heavy pallets.
Trailers frequently operate on uneven surfaces, such as active construction sites. When one wheel drops into a deep rut, the entire chassis attempts to twist. Diagonal bracing and robust cross members provide essential torsional rigidity. By locking the frame into a rigid grid, cross members stop the trailer from twisting, preventing the main beam welds from cracking under rotational stress.
Choosing the correct steel grade is just as important as the physical dimensions of the beams. Heavy-duty trailers primarily rely on two types of high-yield steel. Below is a direct comparison to guide your procurement process.
| Steel Grade | Yield Strength | Weight Impact | Primary Advantage |
|---|---|---|---|
| Q345B Manganese Steel | 345 MPa | Standard Weight | Highly durable and cost-effective with excellent weldability. Ideal for standard heavy hauling. |
| T700 High-Tensile Steel | 700 MPa | Lightweight | Significantly stronger and lighter. Maximizes legal payload capacity by reducing tare weight. |
Procuring equipment built with inferior carbon steel poses severe operational risks. Manufacturers attempting to cut costs may use standard steel that lacks the necessary yield strength. Under a 60-ton stress load, low-grade steel will not simply bend. It is prone to sudden micro-fractures that can cause the entire chassis to collapse during transit.
A massive weight cannot be concentrated in one area. It must be distributed legally and safely across both the tractor fifth wheel and the trailer axle group. The configuration of the main beams must accommodate the precise placement of the axles to ensure the load is shared evenly, preventing localized stress points from exceeding their maximum tolerance.
The areas where the suspension hangers attach to the main beams endure the highest levels of concentrated stress. In a multi axle heavy cargo trailer, typically utilizing a 3-axle or 4-axle setup, the main beams must be doubly reinforced. Engineers achieve this by welding additional steel webbing or doubler plates directly above the suspension hangers. This ensures the beams do not crack under the constant upward pounding of the axles.
The structural integrity of an I-beam is entirely dependent on the quality of its welds. Submerged Arc Welding is the critical standard for welding the upper and lower flange plates to the central web. This technique provides deep and consistent weld penetration, creating uniform seams without weak points, oxidation, or slag inclusions.
In the production of heavy-duty chassis, automated robotic welding ensures absolute consistency. Manual welding introduces the risk of human error. Automated systems maintain a constant travel speed and precise heat input. This prevents the steel from warping due to uneven thermal expansion and guarantees flawless seams from front to back.
Reputable manufacturers subject their beam welds to Non-Destructive Testing, such as X-ray inspection or ultrasonic testing. These testing methods look deep inside the weld seams to detect micro-flaws, porosity, or internal cracks that are invisible to the naked eye. This strict quality control ensures the beam can safely handle heavy-duty applications before it ever leaves the factory floor.
Even perfectly configured beams require ongoing maintenance. Fleet operators should conduct routine visual inspections, specifically looking for rust accumulation, flaking paint, or micro-cracks. Inspectors must pay special attention to the high-stress zones near the suspension hangers, the cross member joints, and the kingpin plate.
Structural configuration has its limits. Even the best-engineered beams will eventually fail if a 60-ton load is dropped aggressively into the direct center of the trailer rather than being distributed evenly across the floor. Operators must train forklift drivers and crane operators to lower cargo gently and load symmetrically. This avoids shocking the chassis system.
Steel has one primary enemy: corrosion. Rust steadily degrades structural integrity over time. To protect the beams, the steel must undergo rigorous shot blasting to remove mill scale and impurities before painting. Applying high-quality polyurethane paint provides a durable barrier against moisture, road salt, and UV degradation. Promptly touching up deep scratches is vital to stop oxidation in its tracks.
Configuring the main and side beams for a high-capacity trailer is an exacting science requiring precise dimensions, high-tensile steel, and flawless welding execution. Every component, from the camber of the central I-beams to the spacing of the cross members, plays a vital role in preventing chassis torsion and structural collapse.
Investing in a properly configured reinforced trailer reduces operational downtime, prevents catastrophic highway accidents, and maximizes your financial return over the lifespan of the vehicle. Do not compromise on the backbone of your fleet. If you are looking to upgrade your transport equipment with engineering you can trust, explore the full range of heavy-duty solutions at Huayu Vehicle. Our engineering team can help you customize the exact beam thickness, steel grades, and axle configurations tailored to your specific heavy cargo needs.
Typically, the main beam height is exactly 500mm, utilizing an I-beam structure with thick upper and lower flange plates, often 14mm and 16mm respectively, to support the heavy payload without sagging.
T700 is a high-tensile strength steel that offers superior load-bearing capacity while being lighter than traditional carbon steel. This effectively reduces the tare weight of the trailer and increases the legal payload you can carry.
Side beams act as the outer perimeter frame, supporting the side walls and edge loads. They work in tandem with cross members to transfer weight from the outer edges back to the main central I-beams, preventing the trailer floor from bowing or buckling.
Yes, absolutely. Even if a trailer is rated for a massive payload, concentrating that weight in one small, localized area can cause the main beam to warp or crack. Evenly distributing the load across the deck and axles ensures the beams function exactly as engineered.
High-quality welds, particularly those done via automated Submerged Arc Welding, will look smooth, uniform, and free of defects such as tiny holes or slag inclusions. Reputable manufacturers will also provide quality assurance certificates verifying ultrasonic testing results.
T700 high-tensile steel is currently the top recommendation in modern engineering. It provides a 700 MPa yield strength, allowing manufacturers to reduce the thickness and weight of the steel without sacrificing load-bearing capabilities.
Camber is an engineered upward curve built directly into the main beam. When the massive payload is applied, the downward force flattens the curve perfectly. Without this pre-stressed upward bow, the heavy cargo would force the beam to bend downward beyond a flat plane, causing dangerous middle sag.
